Light Commercial

The following are Outdoor Indoor Transmission Class Determination (OITC) test reports for this series. Test Method ASTM E90-09 was used to obtain the sound transmission loss data.

X25 Series Casement STC 30 Report OL10-0502   X25 Series Casement STC 39 Report OL10-0503   X25 Series Casement STC 30 Report OL10-0502   X25 LP Picture Window STC 30 Report OL10-0510

X25 Double Hung STC30 Report OL10-0507   X25 Series DH STC 36 OL09-0818   X25 Single Hung STC30 Report OL10-0508   X25 Slider STC 30 Report OL10-0514

SeriousWindows 5000 Series offers several options, including split colors finishes and stainable interior wood veneers that can be combined in a variety of ways. Our stainable interior wood veneers are made of real fir and oak and fused to the frame to provide the look and warmth of traditional wood windows. Our durable finishes don’t require painting; but, if desired, they can easily be painted to complement your homes décor.

Interior Color Options
Style	White	Beige	Sandstone	Slate	Bronze	Oak Laminate	Vertical Grain Fir
Single- and Double-Hung	Standard	Standard	Standard	Standard	Standard	Optional	n/a
Slider Window	Standard	Standard	Standard	Standard	Standard	Optional	n/a
Picture	Standard	Standard	Standard	Standard	Standard	Optional	Optional
Casement	Standard	Standard	Standard	Standard	Standard	Optional	Optional
Awning	Standard	Standard	Standard	Standard	Standard	Optional	Optional
Sliding Patio Door	Standard	Standard	Standard	Standard	Standard	Optional	n/a
Exterior Color Options
Style	White	Beige	Sandstone	Slate	Bronze	Custom
Single- and Double-Hung	Standard	Standard	Standard	Standard	Standard	Optional
Slider Window	Standard	Standard	Standard	Standard	Standard	Optional
Picture	Standard	Standard	Standard	Standard	Standard	Optional
Casement	Standard	Standard	Standard	Standard	Standard	Optional
Awning	Standard	Standard	Standard	Standard	Standard	Optional
Sliding Patio Door	Standard	Standard	Standard	Standard	Standard	Optional

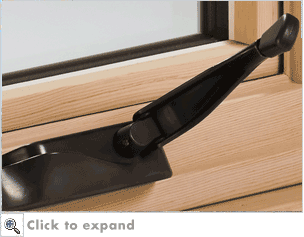

Hardware - Fully nested hardware for a smoother, more contemporary, integrated look. Uniquely designed to prevent handle collapse during operation, the hardware design allows for easy screen release without removing the crank handle and prevents interference with window treatments and blinds. Enclosed gear train keeps dirt and construction debris out of the operator for smoother operation and longer life.

• Certified to meet AAMA 901-07 cycle test at commercial rating.
• Unique hardware design reduces the tendency of the window to “walk” in buffeting wind conditions when compared to similar style operators.
• Engineered to provide easy of operation for large window
• High-pressure die-cast zinc operator housing, crank handle and knob.
• Hardened steel drive worm and gear.
• Hardware is engineered to be resistant to a wide range of corrosive materials, including industrial cleaning materials and environmental pollutants.
• 3x’s better corrosive resistance than common zinc plated finishes.

Hardware Color Options
Style	White	Beige	Coppertone	Black	Chestnut	Brushed Nickel	Oil Rubbed Bronze	Western Pewter	Brushed Antique Brass
Double-Hung	Standard	Standard	Standard	Standard	Standard	Optional	Optional	Optional	Optional
Slider Window	Standard	Standard	Standard	Standard	Standard	Optional	Optional	Optional	Optional
Casement	Standard	Standard	Standard	Standard	Standard	Optional	Optional	Optional	Optional
Awning	Standard	Standard	Standard	Standard	Standard	Optional	Optional	Optional	Optional
Sliding Patio Door	Standard	n/a	n/a	n/a	Standard	n/a	n/a	n/a	n/a

[ ] defines the limit based on a 1:6 aspect ratio (glass width vs height)

  Mulling Maximum Specs

Key:

DP – the design pressure that the size limitation was analyzed to.
Maximum Overall – the maximum size of the entire mulled unit
Maximum Size Unit #1 through #3 – the maximum size of each individual unit of the mulling.
DH – Double Hung Window
SH – Single Hung Window
PW – Picture Window

  SeriousWindows Fiberglass Window Egress

An egress window must satisfy the following International Residential Code (IRC) criteria:

1. Minimum width of opening: 20 inches
2. Minimum height of opening: 24 inches
3. Minimum net clear opening, ground floor: 5.0 sq ft
4. Minimum net clear opening, all other floors: 5.75 sq ft
5. Maximum latch height above floor: 54 inches
6. Maximum sill height above floor: 44 inches

Local building codes may apply more stringent code requirements; please be certain to review those standards.

Serious Materials is one of the few manufactures to offer a Full Limited Lifetime Warranty for all of our SeriousWindows residential products for as long as you own and reside in your home. We promise to repair or replace any defective residential product without hassle.

  10-Year Commercial Limited Warranty
